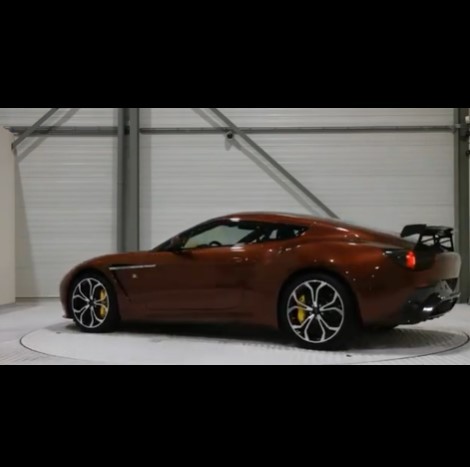

WEMET car turntables provides the safest and most effective solution to the access restrictions imposed by almost all residential configurations.
WEMET provides customers with the most advanced designs, paying more attention to aesthetics and convenience.
WEMET team of senior mechanical engineers carefully evaluate each location and find the perfect solution that best suits your vehicle space requirements.
WEMET car turntables can be installed in almost any place where the car can drive. From houses with underground garages to houses located on busy streets, to mansions on the mountains or overlooking majestic cliffs in cramped spaces and dangerous places.
Parameter
| Mesa Diameter | 4m , 4.5m , 5m , 5.5m , 6m , 7m , 8m , 9m |
| Equipment Is Highly | 310-330mm |
| Period Of Rotation | 0.2-1rpm frequency control |
| Turn angel | 360 degree continuously |
| Carrying Capacity | 3000-8000kg |
| Kind Of Drive | Pin gear transmission |
| Motor Power | 1.5KW |
| Connect Power Supply | AC110V AC220V AC380V selectable |
| Mesa Material | Density board Plywood board plate pattern aluminum alloy board (selectable) |
| Control Mode | Manual control/remote control positive and negative rotation remote control Angle control stop position control (selectable) |
Custom Design
Advantages
1. The pin tooth plate is processed and formed by an automatic cutting machine with a thickness of 10mm.
Hole making process using CNC boring machine machining template hole making;Pin teeth are processed by 45# steel bar machine, after conditioning (heat treatment) and galvanized or black cooking process as a finished product.
2. Pin-tooth automobile rotating platform USES ac frequency conversion brake motor to drive the reducer and drive the main gear to engage the pin shaft part to drive the rotary table to rotate smoothly.
High strength nylon is selected as the gear material. Nylon gear has excellent mechanical strength, abrasion resistance and corrosion resistance, which can replace metal gear and greatly reduce the noise of equipment operation.
3. Through four supporting bolts, the height of the equipment can be adjusted and the requirements of platform installation on the site environment can be reduced.
Nylon is selected as the material of the supporting wheel body for the stable support platform. Nylon wheel has excellent mechanical strength, abrasion resistance and corrosion resistance, which can replace metal gear and greatly reduce the noise of equipment operation.
4. The center seat can adjust the height of the center seat by adjusting the shaft sleeve device of the center seat
Thereby reducing the requirement of equipment installation on site flatness.
FAQ
1. How Long Does Instaiiation Take?
2-3 hours
2. How much space will I need for my turntable?
Minimum required space is the diagonal of the car, IF it is parked dead center.
Since it is usually not parked dead center, it is best to give some extra room.
3. How long does it take to take for a complete 180 degree turn?
Approximately 22 seconds for the complete 180.
